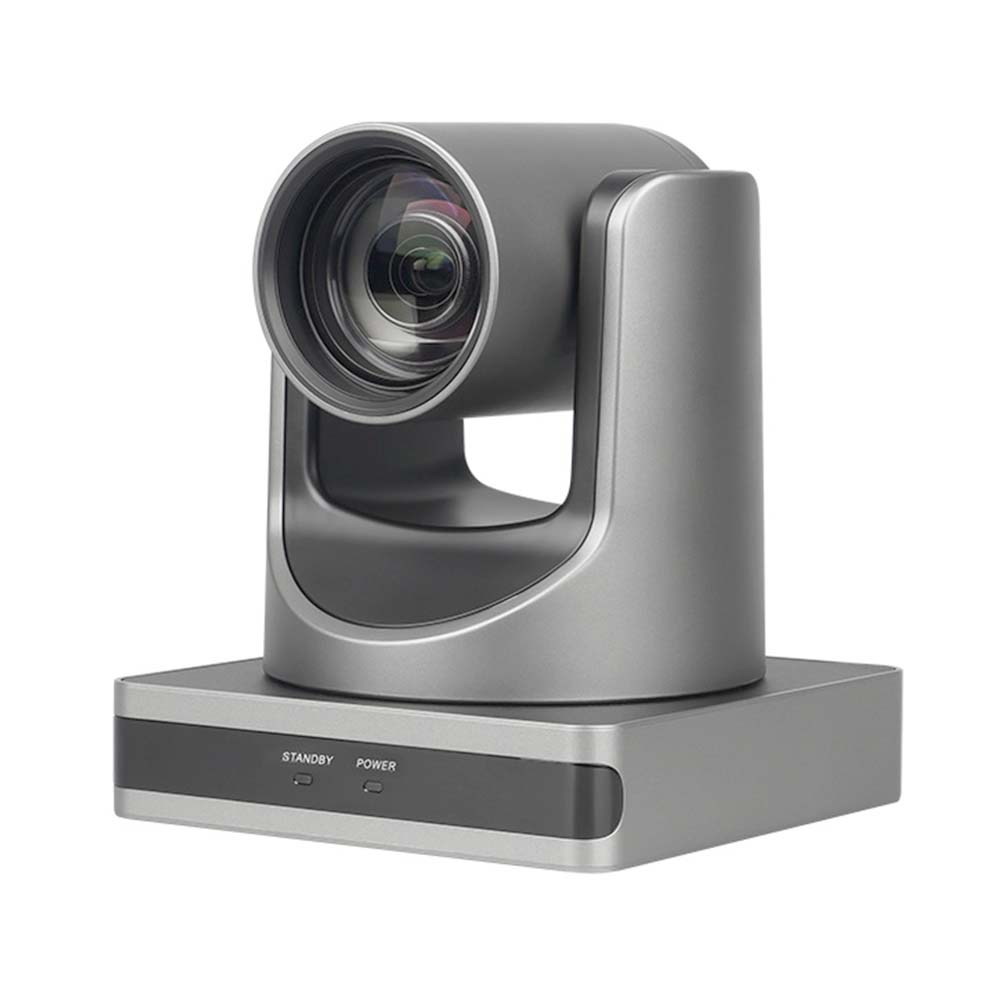

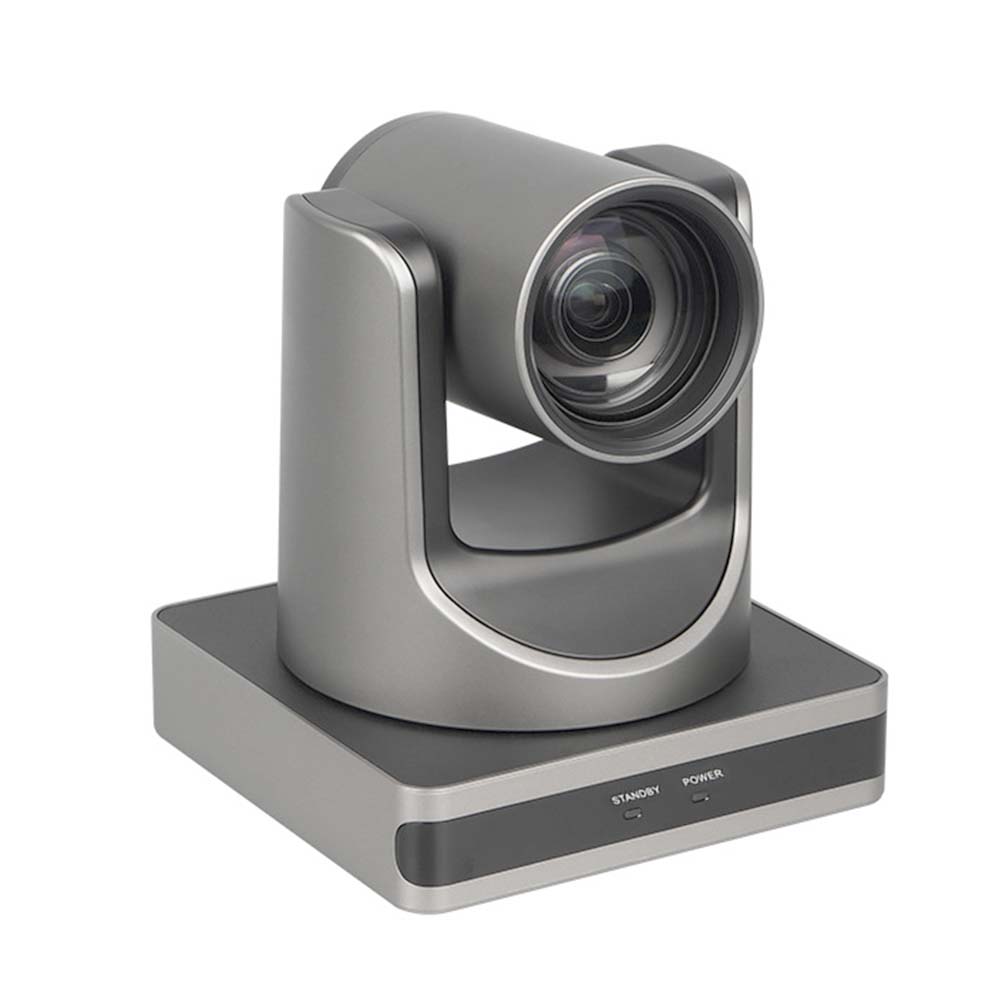

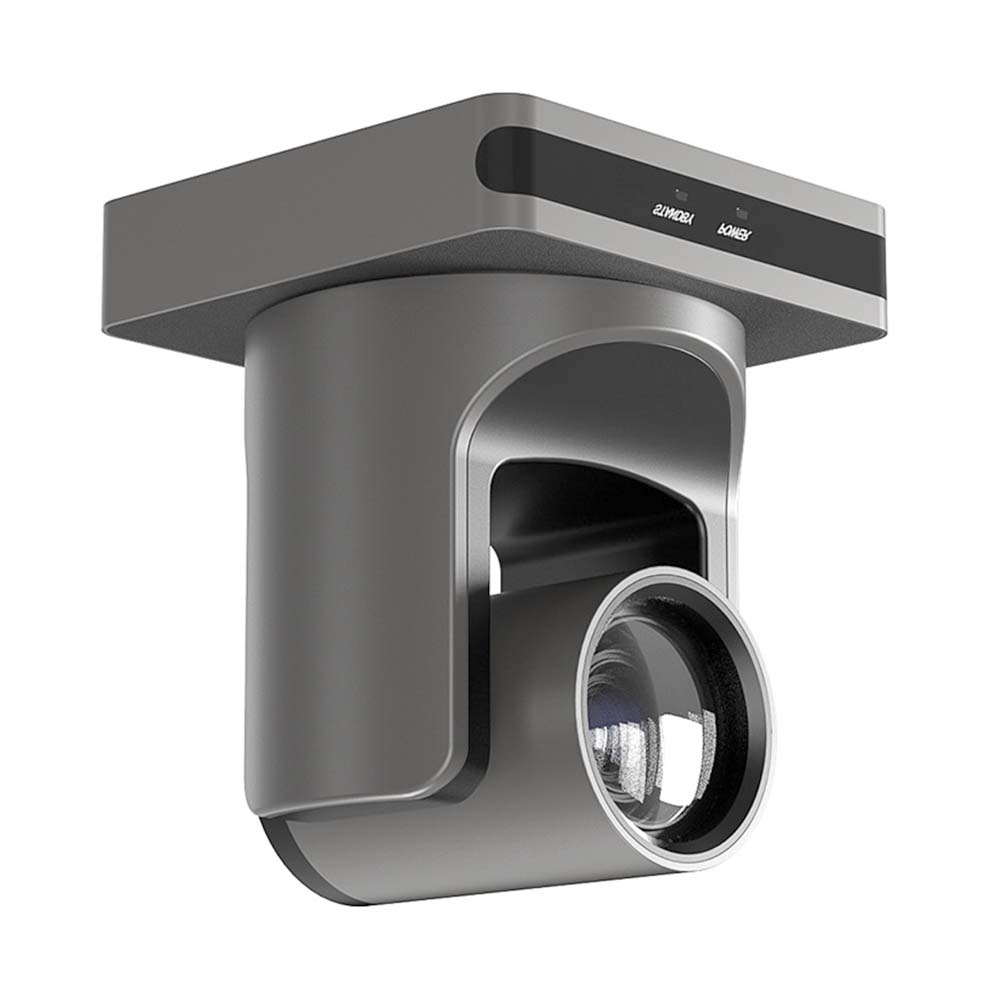

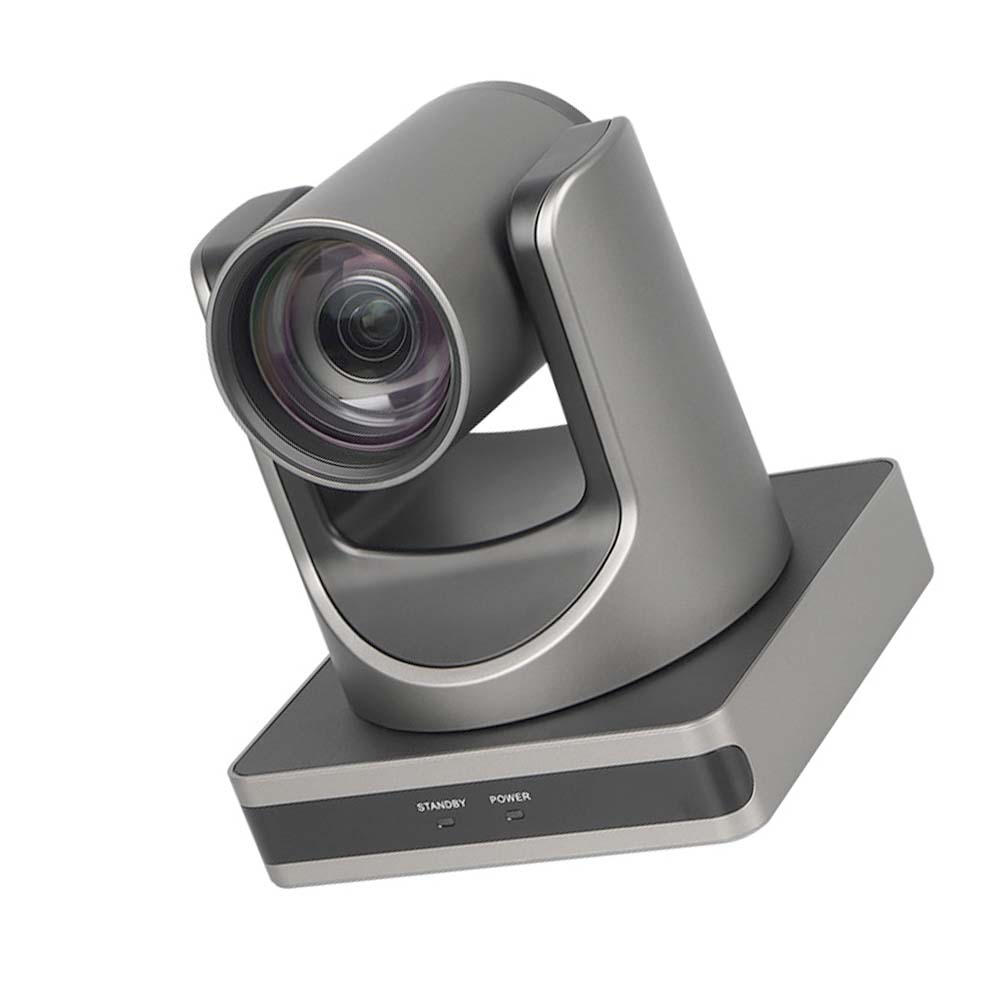

Simitie HD 1080p Optical 20X SDI PTZ Video Camera SC200-20X Grey

Name: Simitie HD 1080p Optical 20X SDI PTZ Video Camera SC200-20X Grey
Brand: SIMITIE
SKU: SC200-20X
Price: 599.0 USD
Availability: InStock

No review

$599.00 ~~$799.00~~

Sale 25.03% $200.00 (25.03%)

Shipping calculated at checkout.

In stock: 200

Description

Experience superior video conferencing with our 20x optical and 16x digital zoom SC200-20X PTZ camera. Boasting H.265 support, full HD 1080p resolution, and a high frame rate of up to 60fps, it ensures top-notch image quality. AAC audio encoding enhances sound quality, while features like local storage, low-light performance, and multiple interfaces (HDMI, 3G-SDI) offer versatility. Ideal for various applications, this camera excels in remote control capabilities via R232 and RS485 interfaces. Elevate your video conferences, meetings, and broadcasts with this advanced, high-quality PTZ camera.

Main Features

●20x Optical + 16x Digital Zoom
High quality super telephoto lens, 20x optical zoom, and 16x digital zoom.
●H.265 Support
H.265 ecoding, enabling transmit full HD 1080p video stream by ultra-low bandwidth.
●1080P Full HD
Apply Panasonic's high quality HD CMOS sensors of 1/2.7 inch, 2.07 million effective pixels, so as to reach maximum 1920 x 1080 resolution and achieve quality image.
●Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.
●AAC Audio Encoding
Support AAC audio encoding, better sound quality and smaller bandwidth.
●Local Storage
Support U disk local storage, local recording directly without NVR.
●Low-light
High quality CMOS sensor and 2D/3D noise reduction can reduce image noise. The Image is still clear and sharp even in low light enviroment, and the SNR is high more than 55dB.
●Multiple Interfaces
Support HDMI, 3G-SDI interface, effective transmission distance up to 150 meters (under 1080p30). HDMI, SDI, Network can output at the same time. It also support CVBS interface.

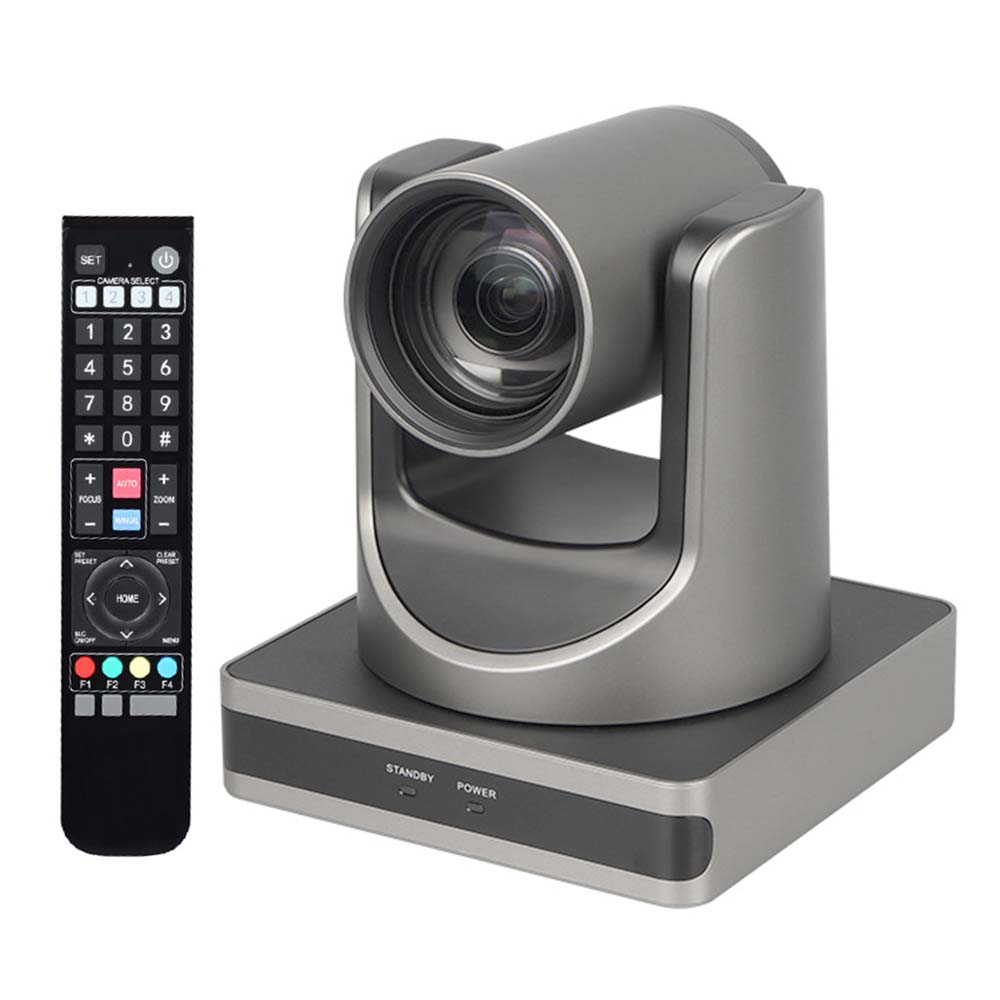

●Remote Control
Using R232 and RS485 interface, all the parameters of the camera can be controled remotely.

Camera
Video System	HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25, 640x480p/240 SD: 480i, 576i
Sensor	1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode	Progressive
Lens	20x, f4.42mm~88.5mm, F1.8 ~ F2.8
Digital Zoom	16x
Minimal Illumination	0.5 Lux @ (F1.8, AGC ON)
Shutter	1/30s ~ 1/10000s
White Balance	Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
Backlight Compensation	Support
Digital Noise Reduction	2D&3D Digital Noise Reduction
Video S/N	≥55dB
Horizontal Angle of View	60.7° ~ 2.28°
Vertical Angle of View	34.1° ~ 1.28°
Horizontal Rotation Range	±170°
Vertical Rotation Range	-30° ~ +90°
Pan Speed Range	1.7° ~ 100°/s
Tilt Speed Range	1.7° ~ 69.9°/s
H & V Flip	Support
Image Freeze	Support
PoE	Support (802.3af)
Local Storage	Support
Number of Preset	255
Preset Accuracy	0.1°
IPC Features
Video Compression	H.265 / H.264 / MJEPG
Video Stream	Main Stream, Sub Stream
Main Stream Resolution	1920x1080, 1280x720, 1024x576
Sub Stream Resolution	720x576, 720x480, 320x240
Video Bit Rate	128Kbps ~ 8192Kbps
Bit Rate Type	Variable Rate, Fixed Rate
Frame Rate	50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps
Audio Compression	AAC
Audio Bit Rate	96Kbps, 128Kbps, 256Kbps
Support protocols	TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.
Input/Output Interface
HD Output	1xHDMI: Version 1.3
HD Output	1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
SD Output	1xCVBS: 3.5mm mini jack, 1Vp-p, 75Ω
Network Interface	1xRJ45: 10M/100M/1000M Ethernet Interface,Support PoE power supply
Audio Interface	1-ch: 3.5mm Audio Interface, Line In
USB	1xUSB2.0: Type A female jack
Communication Interface	1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
	1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only
	1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack	JEITA type (DC IN 12V)
Generic Specification
Input Voltage	DC 12V
Current Consumption	1.0A (Max)
Operating Temperature	-10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature	-40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption	12W (Max)
Size	169mm x 142mm x 164mm
Net Weight	1.35Kg (3.0lb)

Simitie HD 1080p Optical 20X SDI PTZ Video Camera SC200-20X Grey

Scroll to section

Usage Senarios of ptz Camera

Conference

Press Conference
Remote Conference
Virtual Conference
Virtual Training

Church Worship

Weekly Service
Overflow Worship Conference

Education

Lecture
Hybrid Classroome
Online Learning Classroom

Live Streaming

Short video live broadcast
Live concert
Live sports

Main Specification of PTZ Camera

2.07M

20X

60.7° ~ 2.28°

HDMI: Version 1.3

USB2.0: Type A

Chinese, English
