Simitie Professional 30x Zoom HD 1080p PTZ Camera SC200-30S

No review
Regular price $699.00 Sale price $699.00
Shipping calculated at checkout.
In stock: 300
Description

Simitie Professional 30x Zoom HD 1080p PTZ Camera is designed for video conferences, church settings, and conference rooms. This camera features a premium 30x optical and 8x digital zoom, ensuring detailed shots. With H.265 support, it efficiently transmits full HD 1080p video streams with minimal bandwidth. Utilizing Panasonic's high-quality HD CMOS sensors, it achieves a maximum 1920 x 1080 resolution for crisp images.

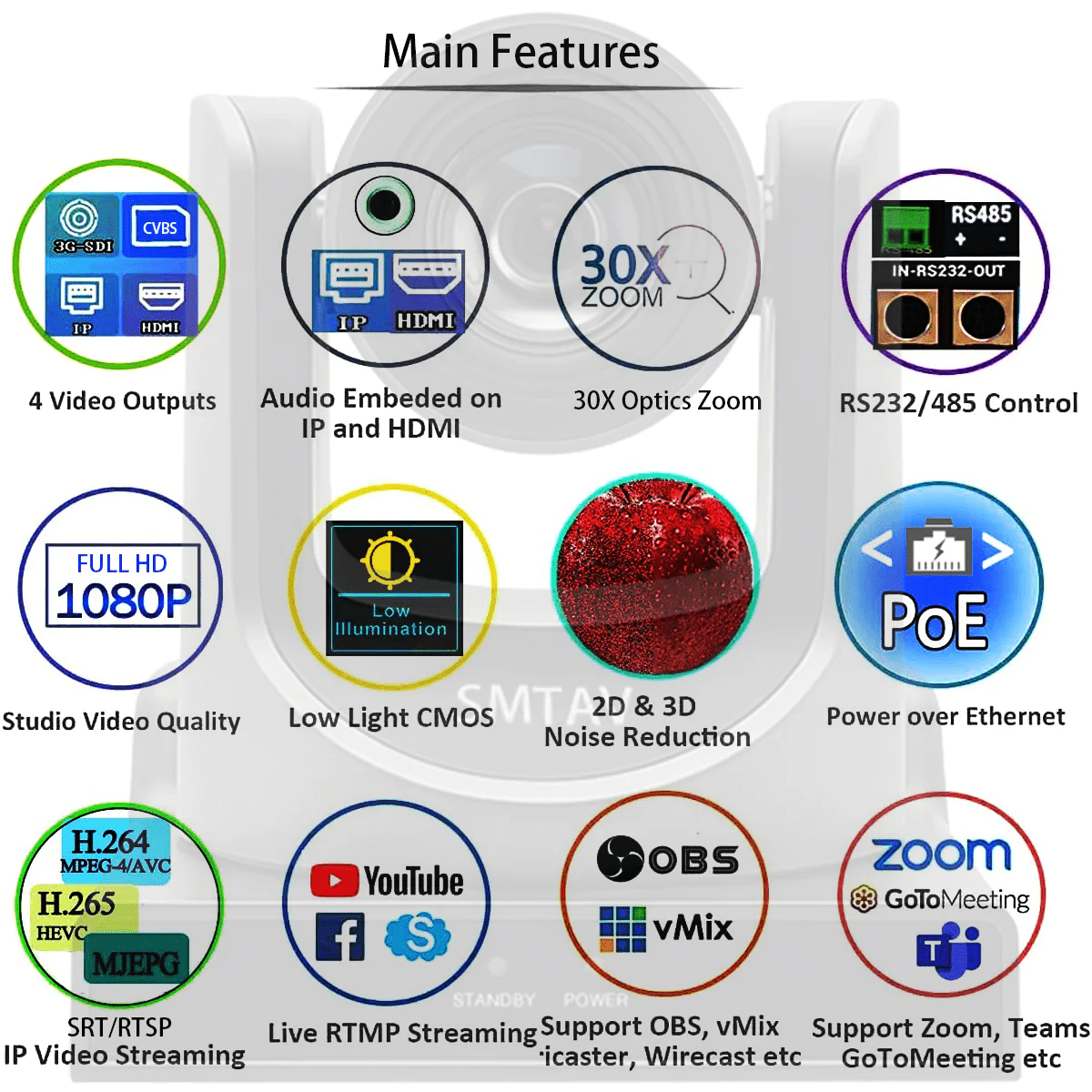

Main Features

●30x Optical + 8x Digital Zoom
High quality super telephoto lens, 30x optical zoom, and 8x digital zoom.
●H.265 Support
H.265 ecoding, enabling transmit full HD 1080p video stream by ultra-low bandwidth.
●1080P Full HD
Apply Panasonic's high quality HD CMOS sensors of 1/2.7 inch, 2.07 million effective pixels, so as to reach maximum 1920 x 1080 resolution and achieve quality image.
●Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.
●AAC Audio Encoding
Support AAC audio encoding, better sound quality and smaller bandwidth.
●Local Storage
Support U disk local storage, local recording directly without NVR.
●Low-light
High quality CMOS sensor and 2D/3D noise reduction can reduce image noise. The Image is still clear and sharp even in low light enviroment, and the SNR is high more than 55dB.
●Multiple Interfaces
Support HDMI, 3G-SDI interface, effective transmission distance up to 150 meters (under 1080p30). HDMI, SDI, Network can output at the same time. It also support CVBS interface.
●Remote Control
Using R232 and RS485 interface, all the parameters of the camera can be controled remotely.

Camera
Video System HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25, 640x480p/240
SD: 480i, 576i
Sensor 1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode Progressive
Lens 30x, f4.42mm ~ 132.6mm, F1.8 ~ F2.8
Digital Zoom 8x
Minimal Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
White Balance Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
Backlight Compensation Support
Digital Noise Reduction 2D&3D Digital Noise Reduction
Video S/N ≥55dB

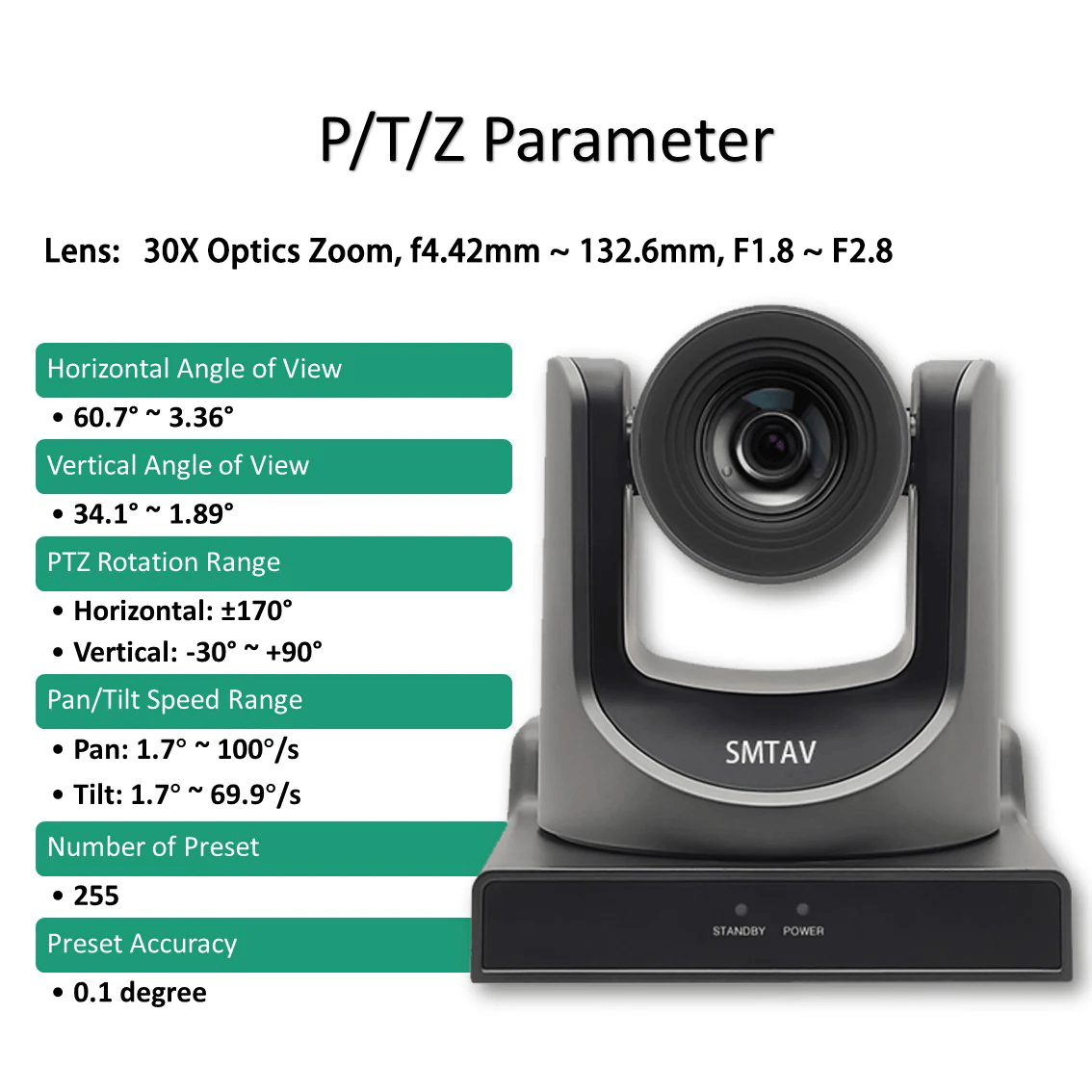

Horizontal Angle of View  60.7° ~ 2.28°
Vertical Angle of View 34.1° ~ 1.28°
Horizontal Rotation Range  ±170°
Vertical Rotation Range  -30° ~ +90°
Pan Speed Range  1.7° ~ 100°/s
Tilt Speed Range  1.7° ~ 69.9°/s
H & V Flip Support
Image Freeze Support
PoE Support (802.3af)
Local Storage Support
Number of Preset  255
Preset Accuracy  0.1°
IPC Features
Video Compression H.265 / H.264 / MJEPG
Video Stream Main Stream, Sub Stream
Main Stream Resolution 1920x1080, 1280x720, 1024x576
Sub Stream Resolution 720x576, 720x480, 320x240
Video Bit Rate 128Kbps ~ 8192Kbps
Bit Rate Type Variable Rate, Fixed Rate
Frame Rate 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps
Audio Compression AAC
Audio Bit Rate 96Kbps, 128Kbps, 256Kbps
Support protocols TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.

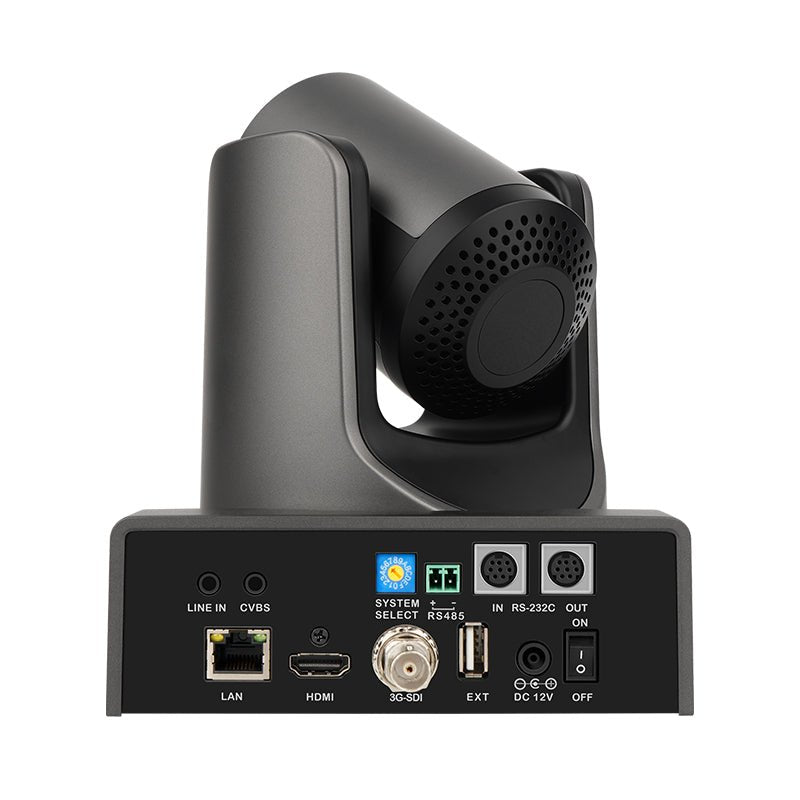

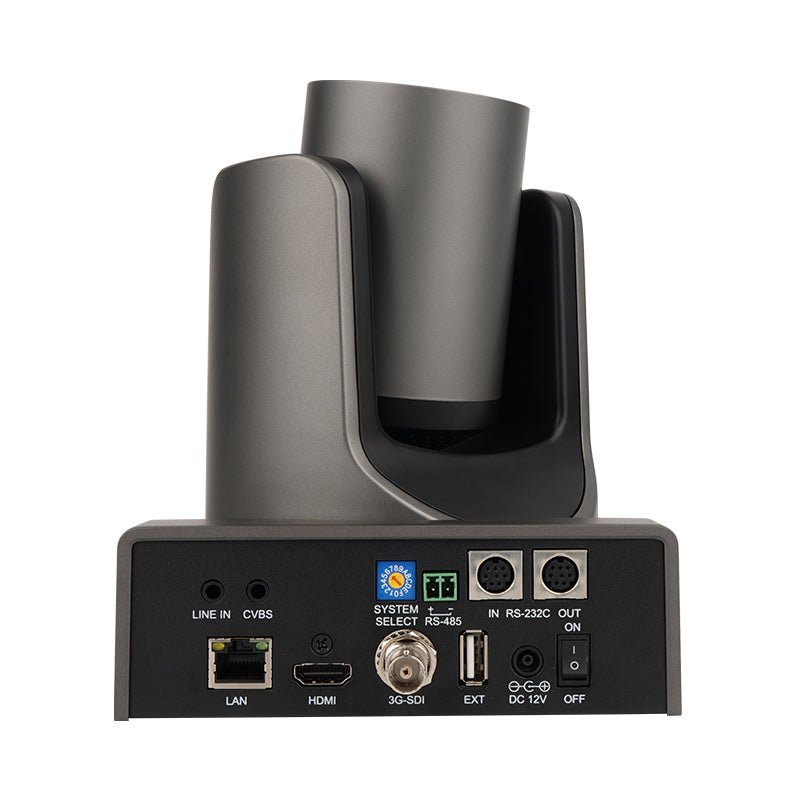

Input/Output Interface
HD Output 1xHDMI: Version 1.3
1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
SD Output 1xCVBS: 3.5mm mini jack, 1Vp-p, 75Ω
Network Interface 1xRJ45: 10M/100M/1000M Ethernet Interface,Support PoE power supply
Audio Interface 1-ch: 3.5mm Audio Interface, Line In
USB  1xUSB2.0: Type A female jack
Communication Interface 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol:  VISCA network use only
1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack JEITA type (DC IN 12V)
Generic Specification
Input Voltage DC 12V
Current Consumption 1.0A (Max)
Operating Temperature -10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption 12W (Max)
Size 169mm x 142mm x 164mm
Net Weight 1.35Kg (3.0lb)

Usage Senarios of ptz Camera

Conference

  • Press Conference
  • Remote Conference
  • Virtual Conference
  • Virtual Training

Church Worship

  • Weekly Service
  • Overflow Worship Conference

Education

  • Lecture
  • Hybrid Classroome
  • Online Learning Classroom

Live Streaming

  • Short video live broadcast
  • Live concert
  • Live sports
remote conference

Main Specification of PTZ Camera

2.07M
30X
60.7° ~ 2.28°
HDMI: Version 1.3
USB2.0: Type A
Chinese, English
